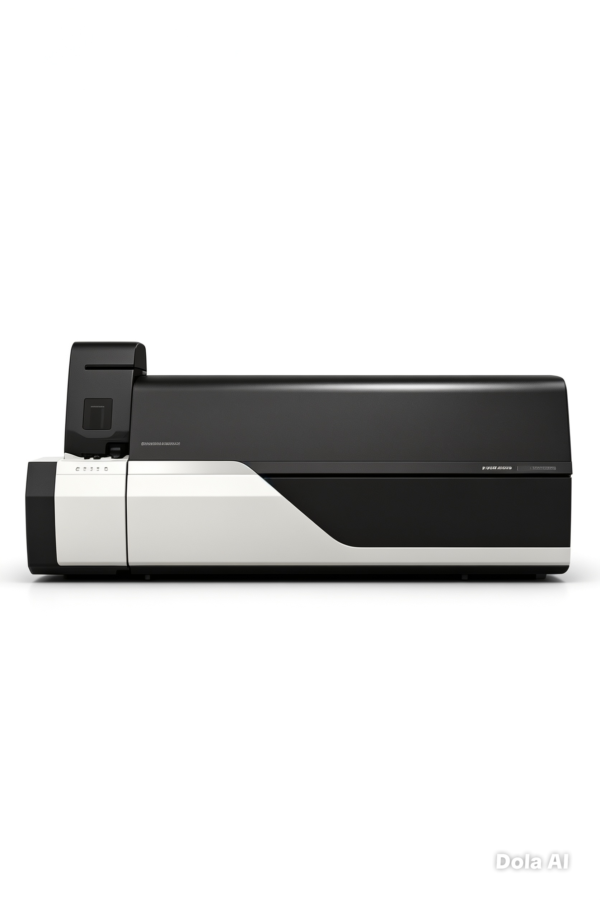

LCMS-8060
| Mass range | m/z 2 to 2,000 |
|---|---|
| Resolution | R < 0.7 u (FWHM) |
| Scan speed | Max. 30,000 u/sec |
| Positive-negative ion polarity switching time | 5 msec |
| MRM measurement speed | Max. 555 channels/sec |
Feature:
Sensitivity
By redefining the ion focusing capability on the UF-Qarray, the LCMS-8060 brings a meaningful impact to quantitative detection and opens new opportunities for scientists to deliver solutions that make a true difference.
The newly developed UF-Qarray ion guide is a groundbreaking technology that increases LC/MS/MS sensitivity by enhancing ion signal intensity and reducing noise. By improving the ion sampling device, the ion guide, and the vacuum efficiency, the LCMS-8060 delivers a new vision of sensitivity and makes a real difference to working better and faster.
Speed
Inspired by the need to balance advanced high speed MS/MS detection technologies with unrivalled LC performance, we were the first mass spectrometry company in the world to deliver a scan speed of 15,000 u/sec and a polarity switching speed of 15 msec. In the LCMS-8060 the scan speed is now increased to 30,000 u/sec and a polarity switching speed of 5 msec making a real difference to working better and faster.
The LCMS-8060 uses UF Technologies to switch polarity in 5 msec.
Detect more
Fast cycle time helps to detect more compounds with greater confidence and precision.
Faster polarity switching time maximizes dwell times and helps to optimize the cycle time of LC/MS/MS methods.
Solving Complex Problems
High-sensitivity quantitation of intact catecholamines (CAs) in human plasma.
Stability
Long term stability study on LCMS-8060
The robustness of the LCMS-8060 and modified ion optics was also assessed by injecting 2400 samples of femto-gram levels of alprazolam spiked into protein-precipitated human plasma extracts over a 6 day period (over 400 samples were injected each day). The RSD of peak area response was 5% over this test period, using a deuterated internal standard (alprazolam-d5) the RSD was 3.5%. As part of the robustness test the vacuum system was vented to model a transient power failure with no effect on signal response or baseline noise level.
The LCMS-8060 features an optimized ion guide and new technologies incorporated in the ion transport optical system. As a result, the ion sampling efficiency and ion focusing capability are significantly increased, to achieve improved sensitivity, approx. 3 times better than that of the LCMS-8050. Inheriting the high-speed performance of the LCMS-8050, this flagship model in the UFMS series features both the world’s highest level of sensitivity and the world’s highest throughput. It is capable of detecting ultra trace components in complex matrices, which have been difficult to detect to date, both quickly and with high sensitivity. This will contribute to further improvements in data quality in all types of trace quantitative analysis applications, such as for biological samples, which requires the highest level of sensitivity.
