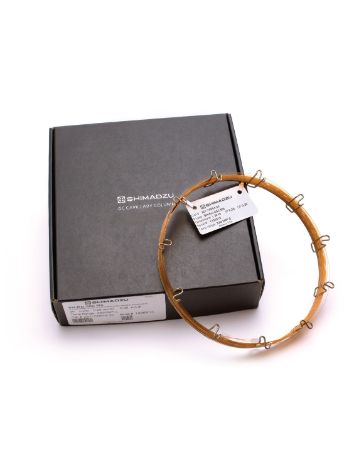

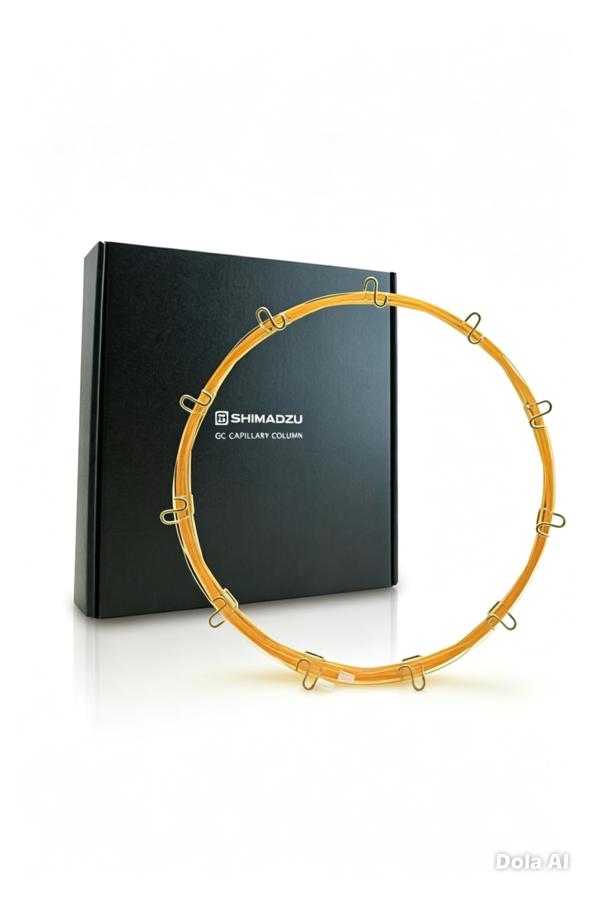

Capillary Column (SH Series)
How to select the stationary phase
| Stationary Phase | 100% dimethyl polysiloxane | ** % diphenyl / ** % dimethyl polysiloxane | ** % cyanopropylphenyl / ** % dimethyl polysiloxane |
Trifluoropropyl methyl polysiloxane | Polyethylene glycol |
|---|---|---|---|---|---|
| Polarity | Non-polar | Low to Medium | Medium | Medium to High | High |
| Separation Properties | Elution in boiling point order | Aromatic compounds are retained by phenyl group content | Effective for separation of oxygenated compounds, isomers, etc. | Uniquely retains compounds containing halogens | Strong retention of polar compounds |
| Applications | Gasoline and solvent related | Flavors, environmental related, aromatic compounds | Pesticides, PCBs, oxygenated compounds | Halogenated compounds, polar compounds, solvents | Polar compounds, solvents, Flavors, FAME |
| Columns | SH-I-1MS SH-I-1HT SH-1 SH-MetalX |
SH-I-5MS SH-I-5HT SH-I-17 SH-5 SH-5MS SH-20 SH-35 SH-35MS SH-65 SH-MetalX-5 |
SH-1301 SH-624 SH-1701 |
SH-200 SH-200MS |
SH-Wax SH-PolarWax |
Shimadzu offers a wide range of GC Columns including Fused Silica Capillary Columns, Fused Silica PLOT Columns, Stainless Steel Columns, Guard Columns and application specific columns. Our SH series are manufactured to the highest industry standard and designed to provide excellent chromatographic performance, reproducibility and lifetime complementing any GC/GC-MS instrument.
